Un-equal Length No-Prep/Radial 4 Link Kit

Un-equal Length No-Prep/Radial 4 Link Kit.

This 4 link kit is designed with a shorter upper arm to create the upper and lower arms to be un-equal. This set up acts like a stock suspension car which allows for quick separation to plant the tyre into the track. The kit is much stronger and has a lot more adjustability over stock mounts. This configuration is versatile and works great on radials as well as slick tyre no-prep. Chassis brackets can be cut down to suit stock floor.

Brackets are 6mm mild steel with 3mm doublers, 1/2" link holes with 10mm adjustment increments, 1 5/8" bracket mounting through holes, NAS or Grade 8 bolts, 3" or 3.5" diff tubes. Chromoly Brackets available upon request, please contact for pricing.

Control arm length is recommended to be- Uppers, 300mm-500mm. Lowers, 450mm-650mm

With no-prep racing booming in the states and gaining popularity in Australia, we wanted to offer locally available parts to help you get your car to the track.

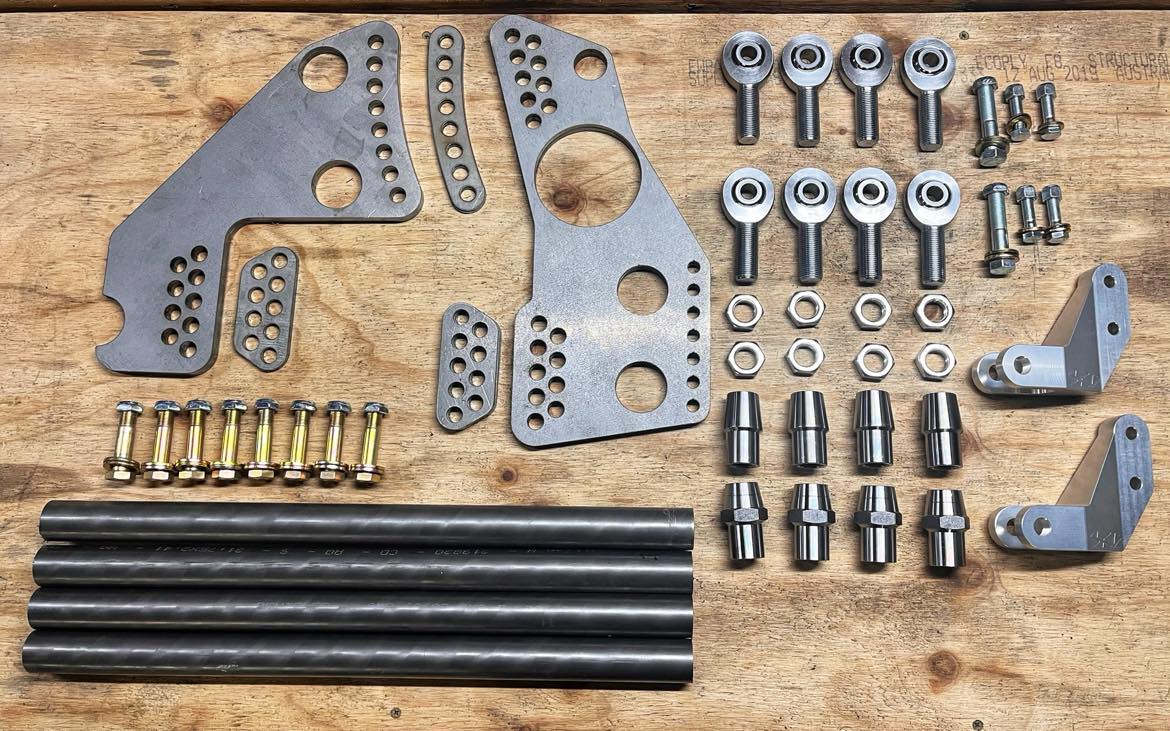

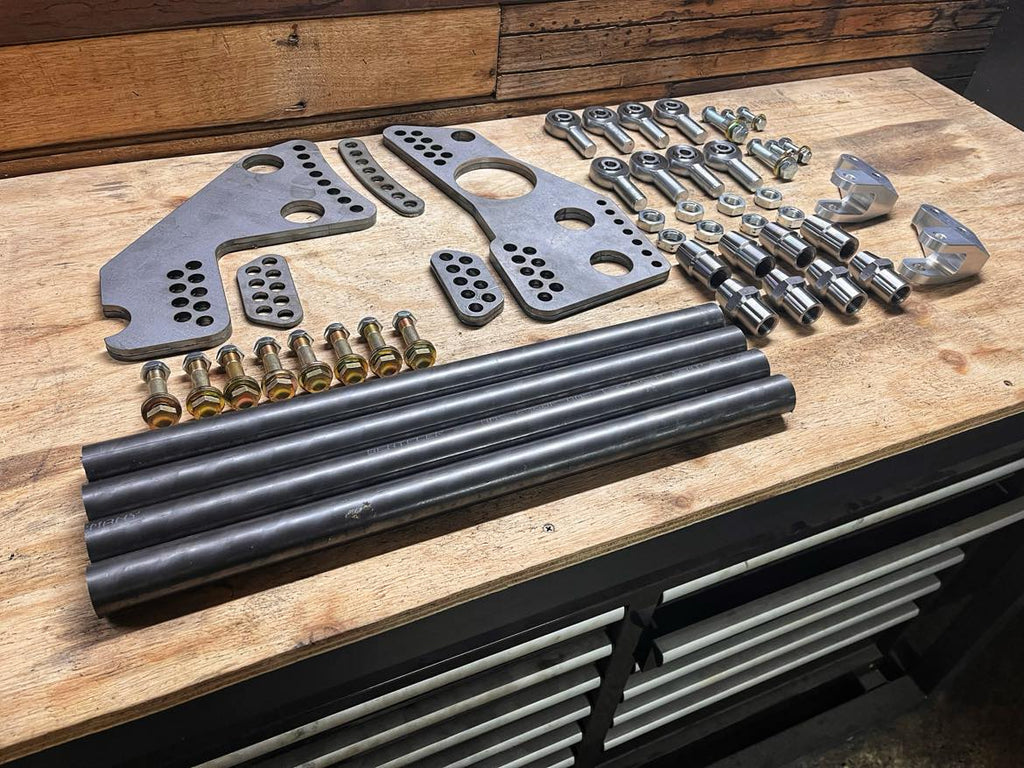

Kit Includes-

• 4x Un-equal length chassis brackets w/ doublers.
• 4x Housing brackets w/ doublers
• 4x 500mm 1.25"x.095" chromoly pieces
• 4x RH 1/2"x3/4" Chromoly hiem joints w/ jam nuts
• 4x LH 1/2"x3/4" Chromoly hiem joints w/ jam nuts
• 4x RH 1.25" Weld-in tube adapter
• 4x LH 1.25" Weld-in tube adapter
• 8x 4 link mounting bolts, Grade 8 or NAS
• 2x billet shock mounts w/ mounting hardware (steel option available)

Note: This product is supplied for off‑road use only. It is not certified for road use under ADR or other public road standards. By purchasing this kit, you acknowledge the responsibility to install correctly and to ensure the product’s suitability, maintenance, and compliance with any applicable laws. Subroza Race Chassis accepts no liability for damage, failure, or injury resulting from use of our products.
